Understanding Geothermal Foundation Heating
Geothermal foundation heating represents an innovative integration of renewable energy into home construction. This system embeds heat exchange loops directly into the concrete foundation, allowing the structure to serve dual purposes: structural support and thermal regulation. By harnessing the earth's stable subsurface temperatures, which remain relatively constant at depths of four to six feet, the system efficiently transfers heat to or from the home.

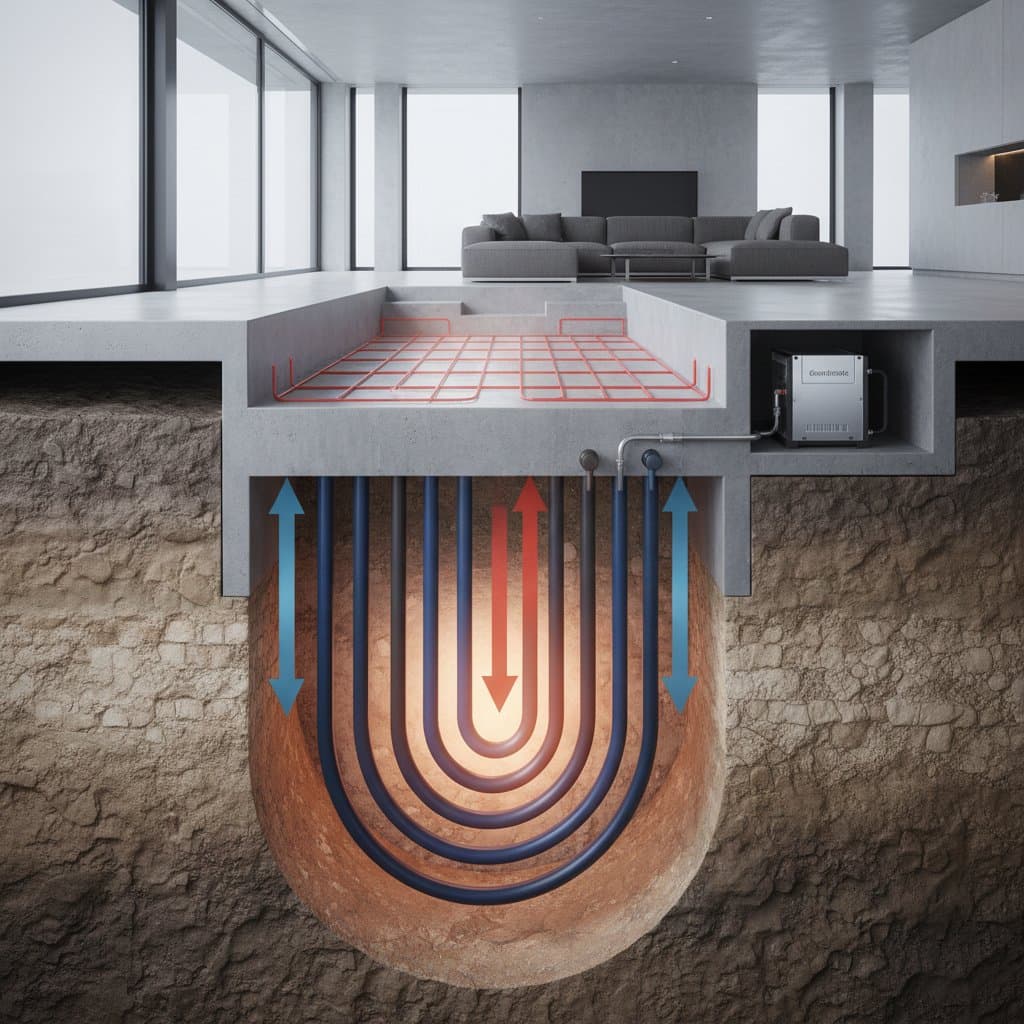

The core mechanism involves a ground-source heat pump connected to a network of high-density polyethylene (HDPE) pipes laid within the foundation. During winter, fluid circulates through these loops, absorbing warmth from the ground and delivering it indoors via the heat pump. In summer, the process reverses, expelling excess heat into the earth for cooling. This closed-loop design ensures minimal environmental impact while maximizing energy efficiency, often achieving three to four times the efficiency of traditional furnaces.
Homeowners benefit from reduced reliance on fossil fuels, leading to lower carbon footprints and compliance with emerging green building standards. The system's durability stems from the robust materials used, designed to withstand soil pressures and thermal cycles for decades.
Key Components and Functionality
A typical geothermal foundation system comprises several essential elements. The foundation loops form the heat exchanger, embedded in a grid pattern during the pour. These connect to a heat pump unit, usually located in the basement or utility space, which processes the transferred energy.
Supporting components include a circulation pump to move the fluid, often a water-antifreeze mixture, and manifold headers for even distribution. Sensors monitor performance, ensuring optimal operation. The heat pump then distributes conditioned air or hydronic heat through existing ductwork or radiant flooring.
Efficiency ratings, measured in coefficients of performance (COP), typically range from 3.5 to 5.0, meaning the system delivers 3.5 to 5 units of heat for every unit of electricity consumed. This outperforms air-source heat pumps in variable climates, providing consistent results regardless of outdoor conditions.
Installation Process and Professional Expertise
Professional installation proves essential for geothermal foundation systems due to the technical precision required. Engage a licensed geothermal specialist experienced in loop fusion, heat pump integration, and comprehensive system testing. These experts utilize specialized equipment to weld HDPE pipes securely and charge the system with the appropriate fluid mixture, preventing leaks that could compromise efficiency or safety.
Certain site conditions demand additional expertise. Unstable soil requires geotechnical analysis to ensure loop integrity. Steep slopes or limited access necessitate careful planning to maneuver heavy drilling rigs. Vertical loops, used when horizontal space limits options, involve borehole drilling to depths of 100 to 400 feet, overseen by engineers to maintain structural stability.
The process begins during the foundation excavation phase. Contractors lay out the loop configuration based on home size and heat load calculations. After embedding and connecting the pipes, they test for pressure and flow before pouring the concrete, encapsulating the system permanently.
Regional and Climate Considerations
Adaptations to local conditions enhance system performance and longevity. In regions with deep frost lines, such as northern climates, position loops below the frost depth, typically four to eight feet, to access unfrozen ground temperatures around 50 degrees Fahrenheit. Insulate the foundation perimeter with rigid foam boards to minimize lateral heat loss through the soil.
Coastal areas or locations with high water tables call for sealed vertical loops to prevent fluid migration into groundwater. Use corrosion-resistant materials and follow environmental guidelines to avoid contamination risks.
In arid, rocky environments, initial drilling costs may increase due to harder substrates, yet the system's reliability remains high. The consistent subsurface heat in these areas supports strong thermal exchange, offsetting upfront expenses over time.
For regions experiencing intense summer temperatures, configure the heat pump for reversible operation. This provides efficient cooling by rejecting heat to the cooler ground, reducing the strain on supplemental air conditioning units and maintaining indoor comfort without excessive energy use.
Compliance with local codes remains critical. Verify requirements for loop depth, antifreeze compositions, and fluid management protocols, as jurisdictions vary in their standards for geothermal installations.
Steps to Implement Geothermal Foundation Heating
The optimal window for incorporating this system occurs during new construction or extensive foundation work, aligning seamlessly with excavation and footing preparation. This integration avoids the disruption and added costs of retrofitting existing structures.
Initiate the process by consulting a certified geothermal designer. Request a detailed heat loss analysis for your home's layout, alongside soil testing to assess thermal conductivity and load-bearing capacity. The designer will produce a site-specific layout, including loop spacing and pump sizing, tailored to your energy needs.
Solicit bids from installers with proven residential foundation experience, beyond general HVAC providers. Evaluate proposals based on itemized budgets covering soil assessments, excavation, piping materials, and the heat pump itself. Prioritize contractors offering references from comparable projects, particularly in similar geological settings.
Post-installation, document the system for eligibility in renewable energy incentives. Many governments offer tax credits or rebates that can recoup 20 to 30 percent of initial investments, accelerating payback periods to seven to ten years.
- Conduct a preliminary site visit with the designer to evaluate feasibility.
- Obtain multiple quotes and compare warranties, typically 25 to 50 years for loops and 10 years for pumps.
- Schedule installation during off-peak construction seasons to minimize delays.
- Perform annual maintenance checks on the heat pump and fluid levels to sustain efficiency.
Costs and Financial Planning
Upfront investments for geothermal foundation systems range from $15,000 to $30,000 for a typical 2,000-square-foot home, depending on loop configuration and site challenges. This includes design, materials, labor, and equipment. While higher than conventional heating, the long-term savings on energy bills, averaging 40 to 70 percent reductions, justify the expense.
Factor in regional variances: Softer soils lower drilling costs, while rocky terrains elevate them. Energy audits can refine sizing to avoid overspending on capacity. Financing options, such as green loans or property tax exemptions, further ease the burden.
Payback analysis reveals additional value. In high-utility-cost areas, owners recoup investments faster through decreased monthly expenses and potential insurance discounts for energy-efficient features.
Enduring Advantages of Geothermal Integration
Geothermal foundation heating elevates your home into a sustainable asset. By slashing fuel demands, it delivers substantial savings and enhances daily comfort with even temperatures and humidity control. The system's whisper-quiet function and minimal upkeep requirements integrate effortlessly into modern lifestyles.
Structurally, the embedded loops shield against thermal expansion and contraction, preserving foundation integrity over decades. Reduced condensation minimizes moisture issues, while warm floors in winter promote healthier indoor environments.
For forward-thinking homeowners, this technology boosts property value, appealing to eco-conscious buyers. It positions your residence as a model of efficiency, combining durability with environmental stewardship for lasting rewards.
